Rockall Trough

Volcanoes, intrusions, complex and subtle faulting and wild amplitude variations.

These examples are taken from the UK North Sea Transition Authorities “Rockall Trough” dataset. The data is used by permission. The complete survey is available on request.

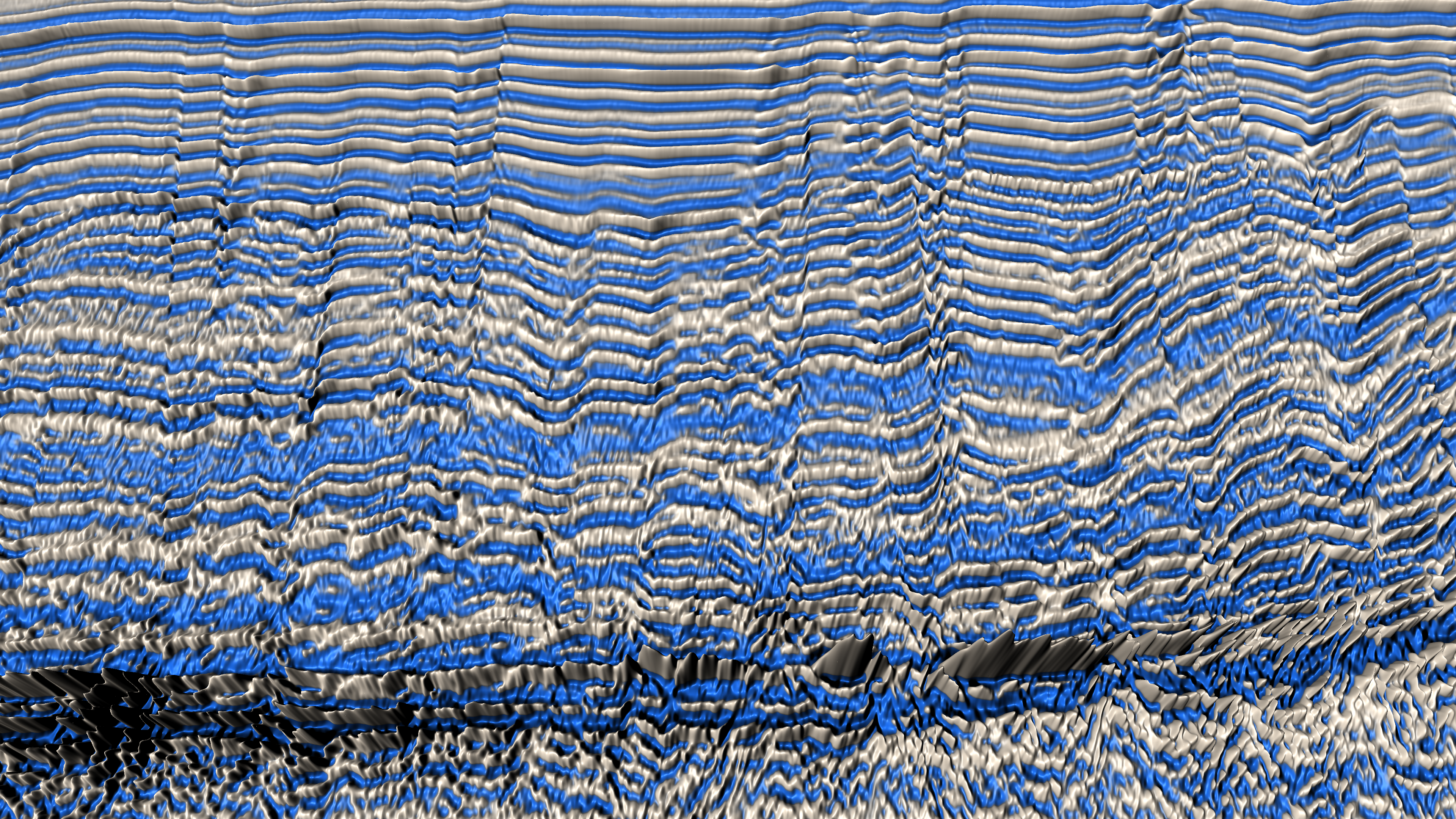

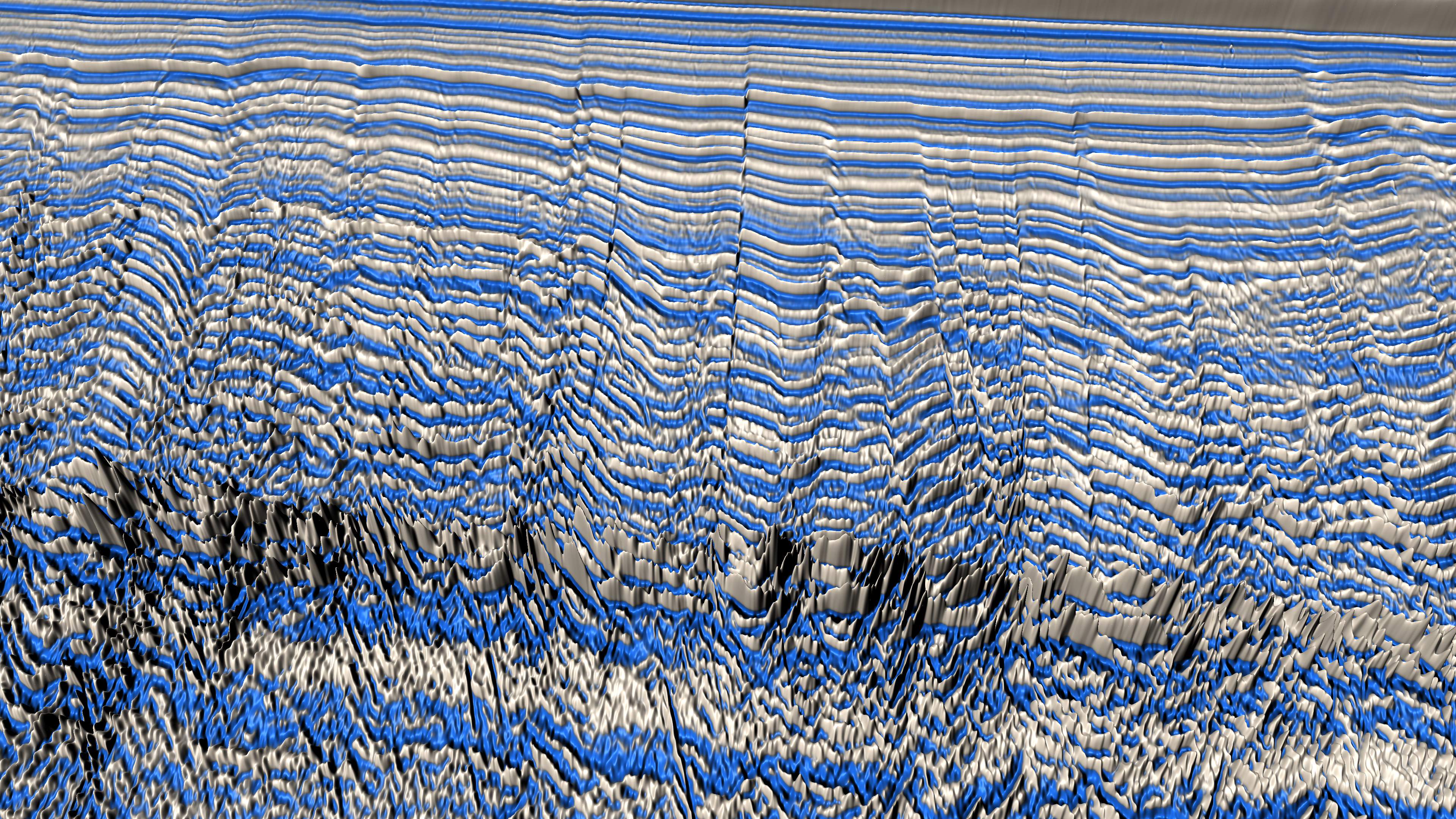

There is a potential target zone beneath the lower magmatic intrusions.

Rockall Trough Line 70. Data courtesy UK NSTA.
After
Rockall Trough Line 70. Data courtesy UK NSTA.
Middle
Before

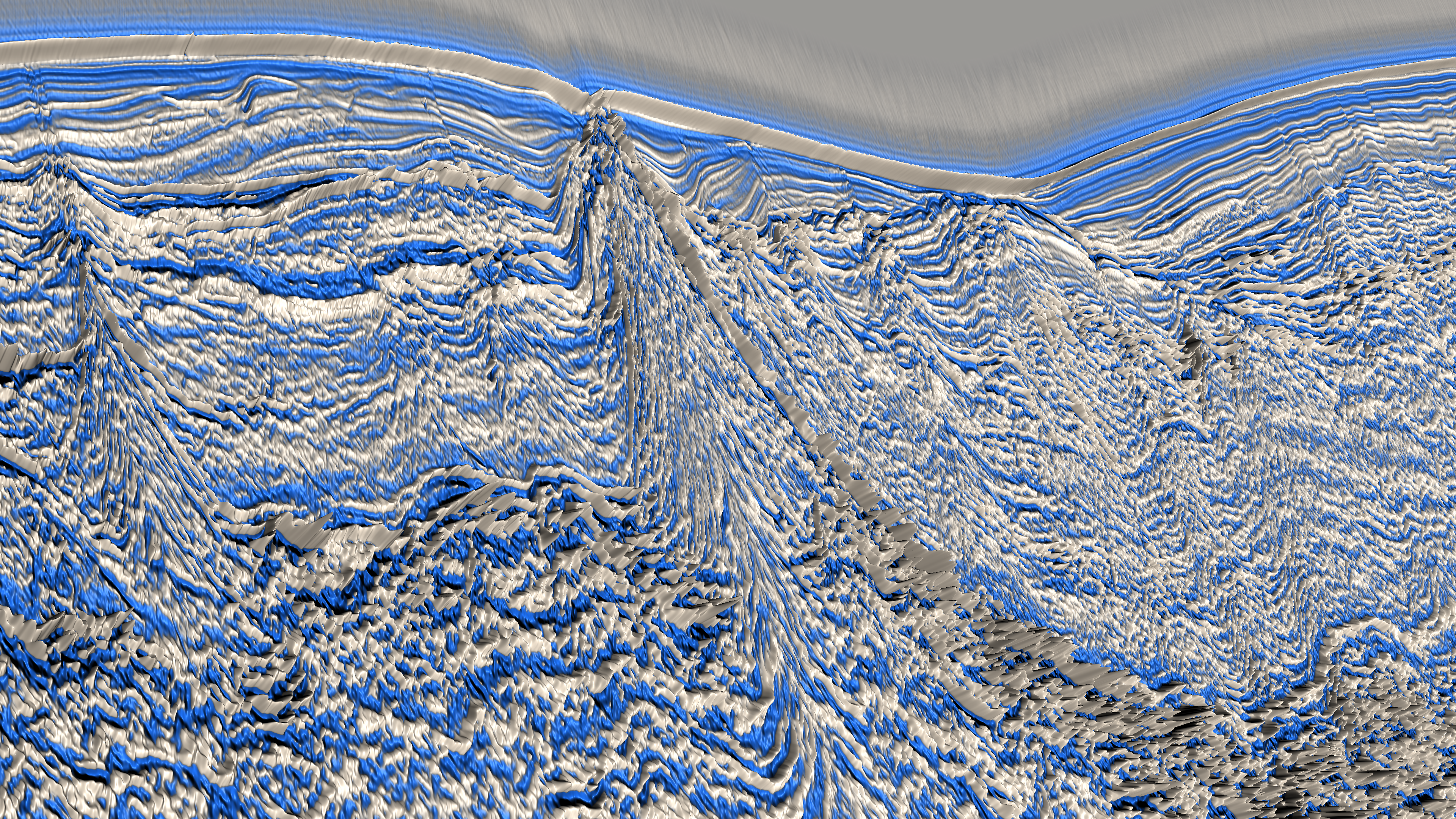

Example of Complex Volcanics

This data has, among other things, highly complex volcanic formations and inclusions. Amplitude visualization is a must.

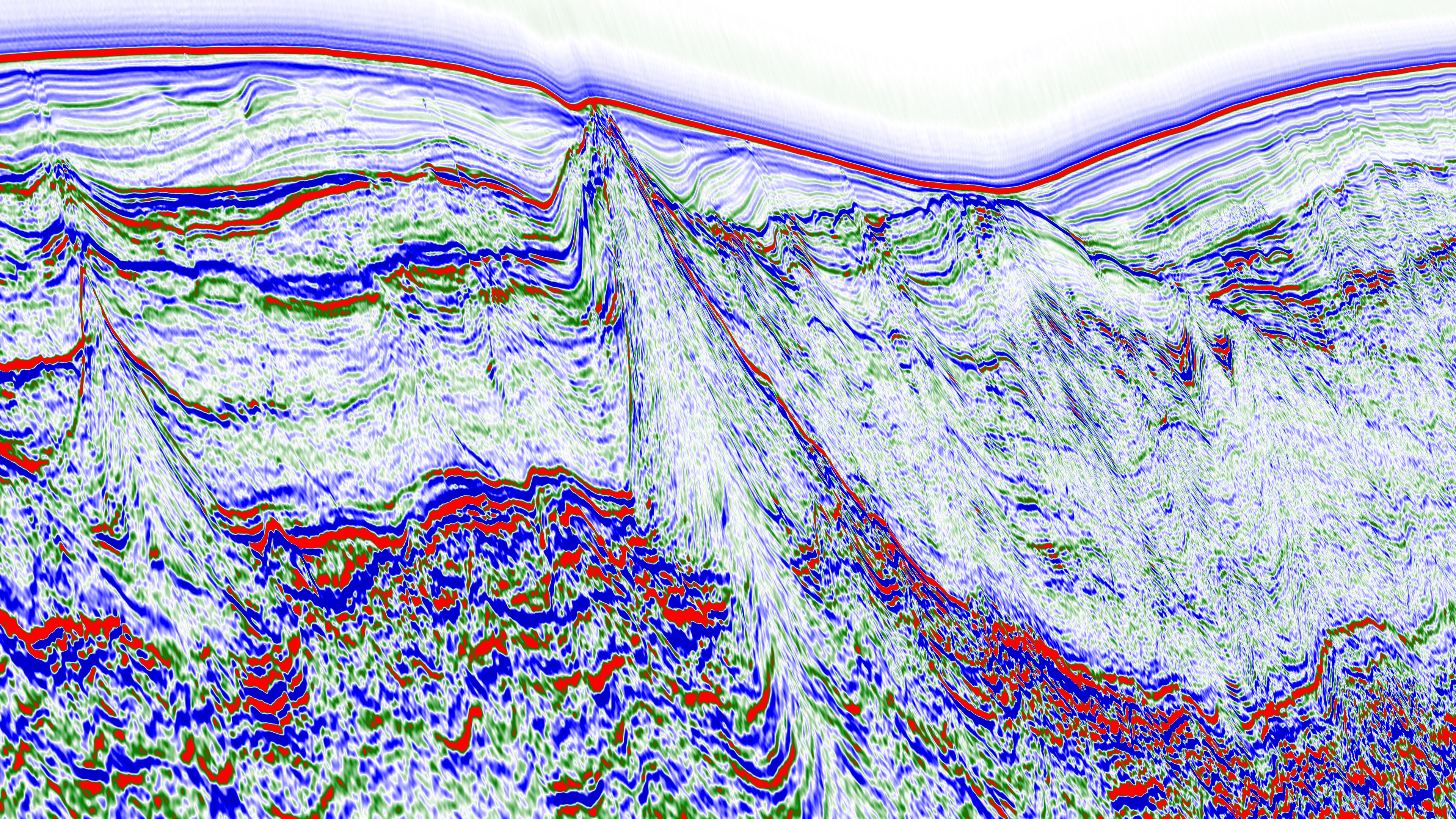

Color has limited dynamic range

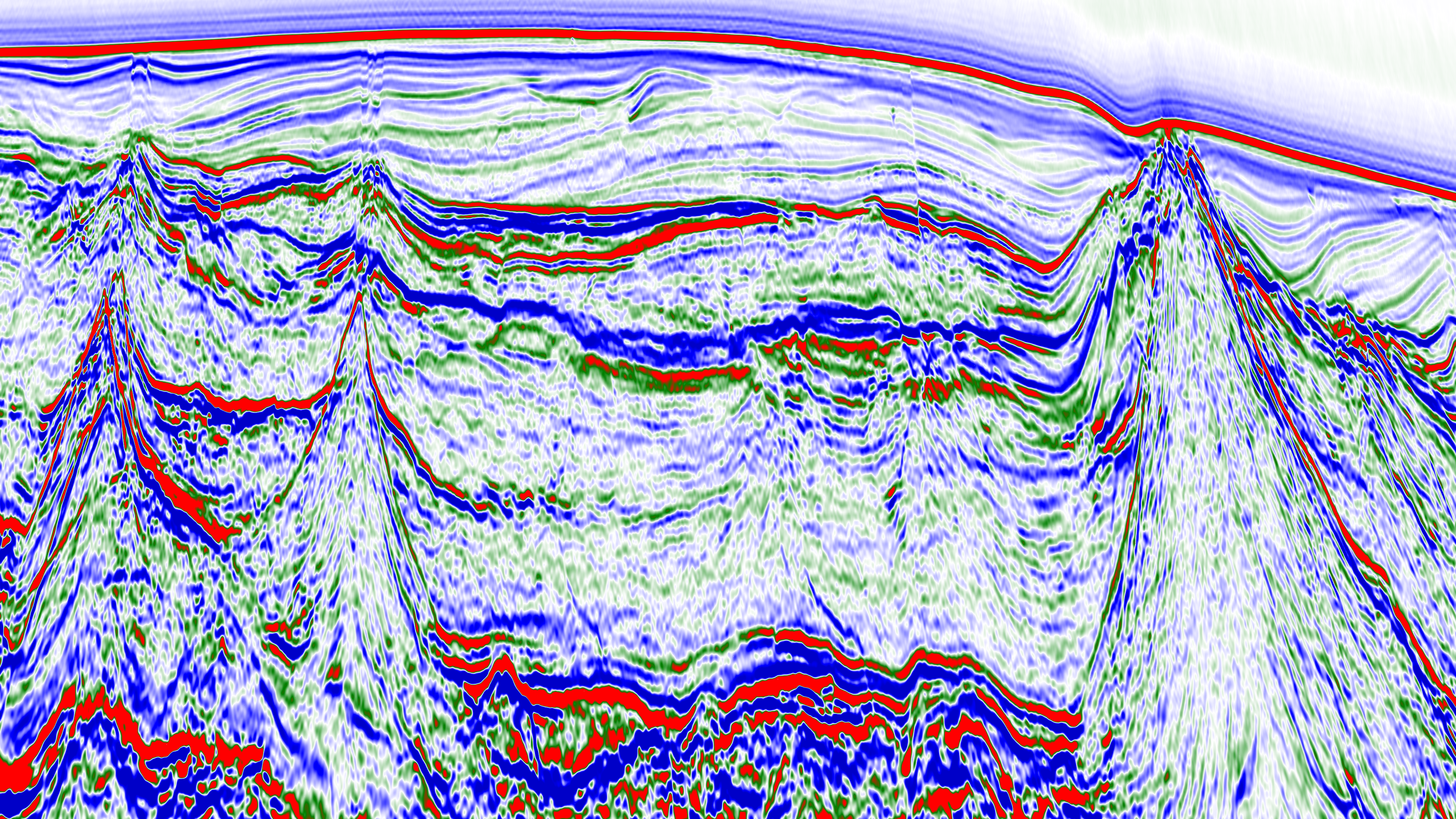

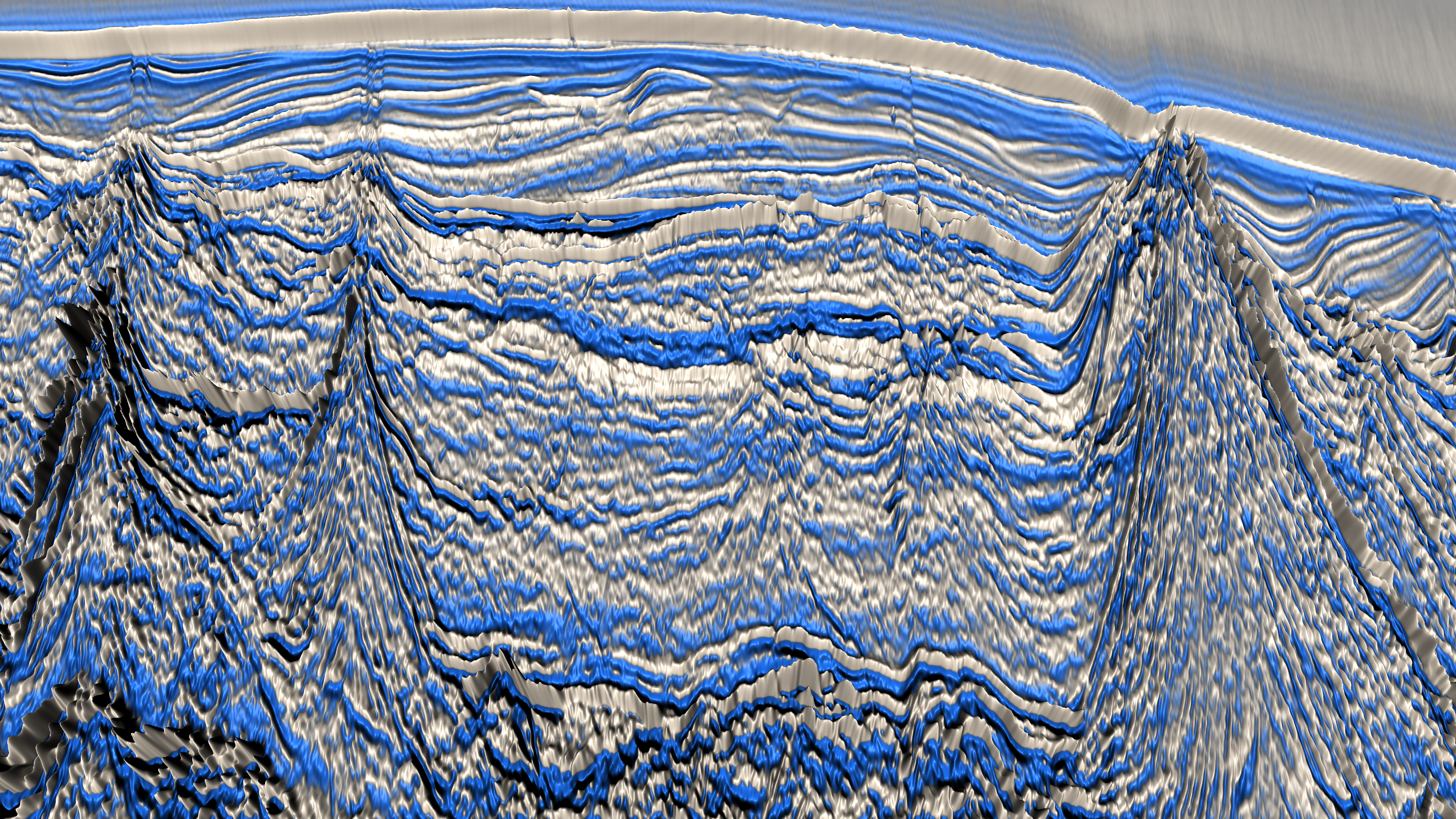

This example of twin volcanoes highlights the impossibility of representing extreme amplitude variations by color alone.

FIne scale amplitude details

Color masks a tremendous amount of amplitude details. Check out the "Horns" in the center of the display. Did you suspect the detail when looking at color?

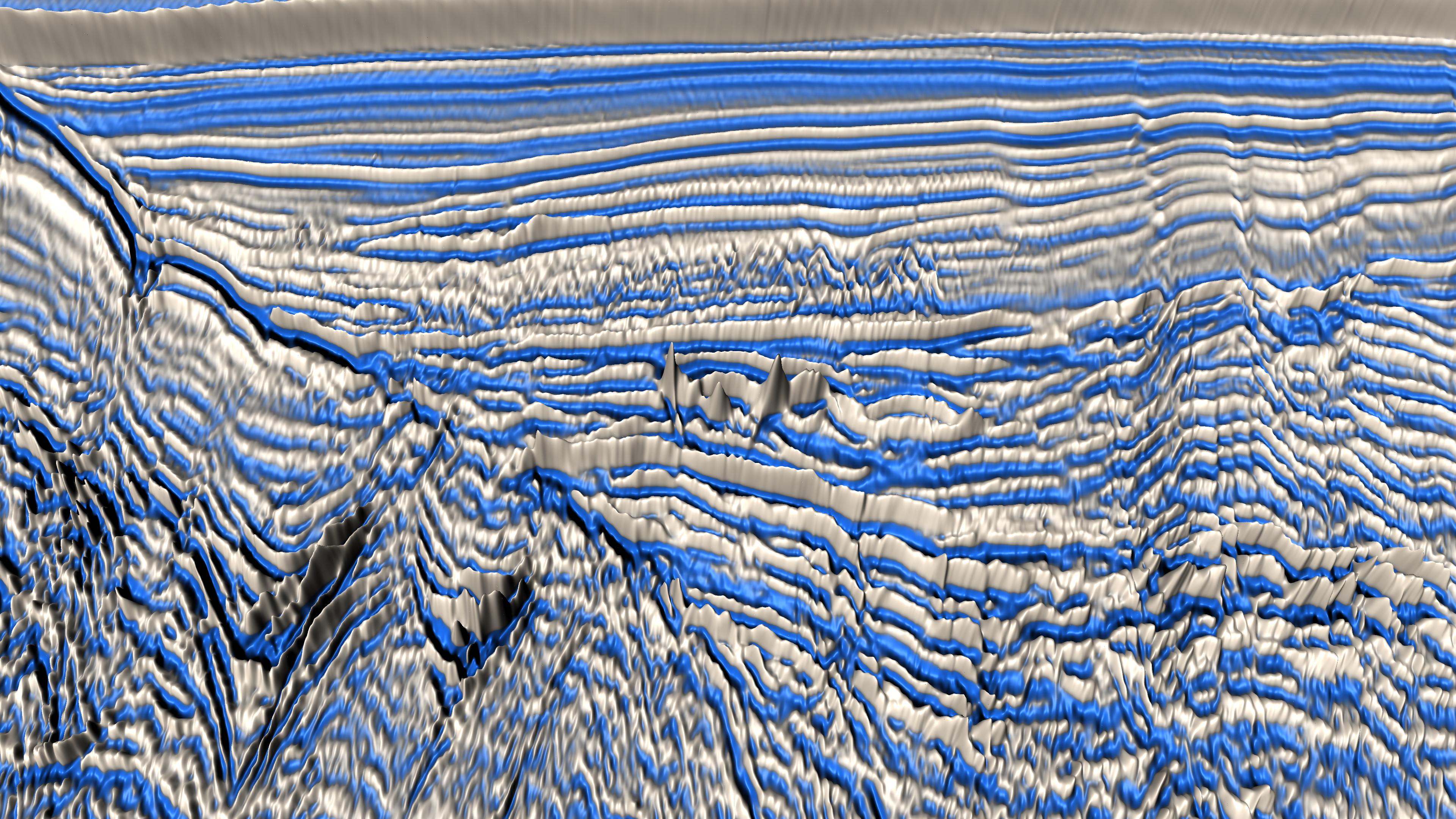

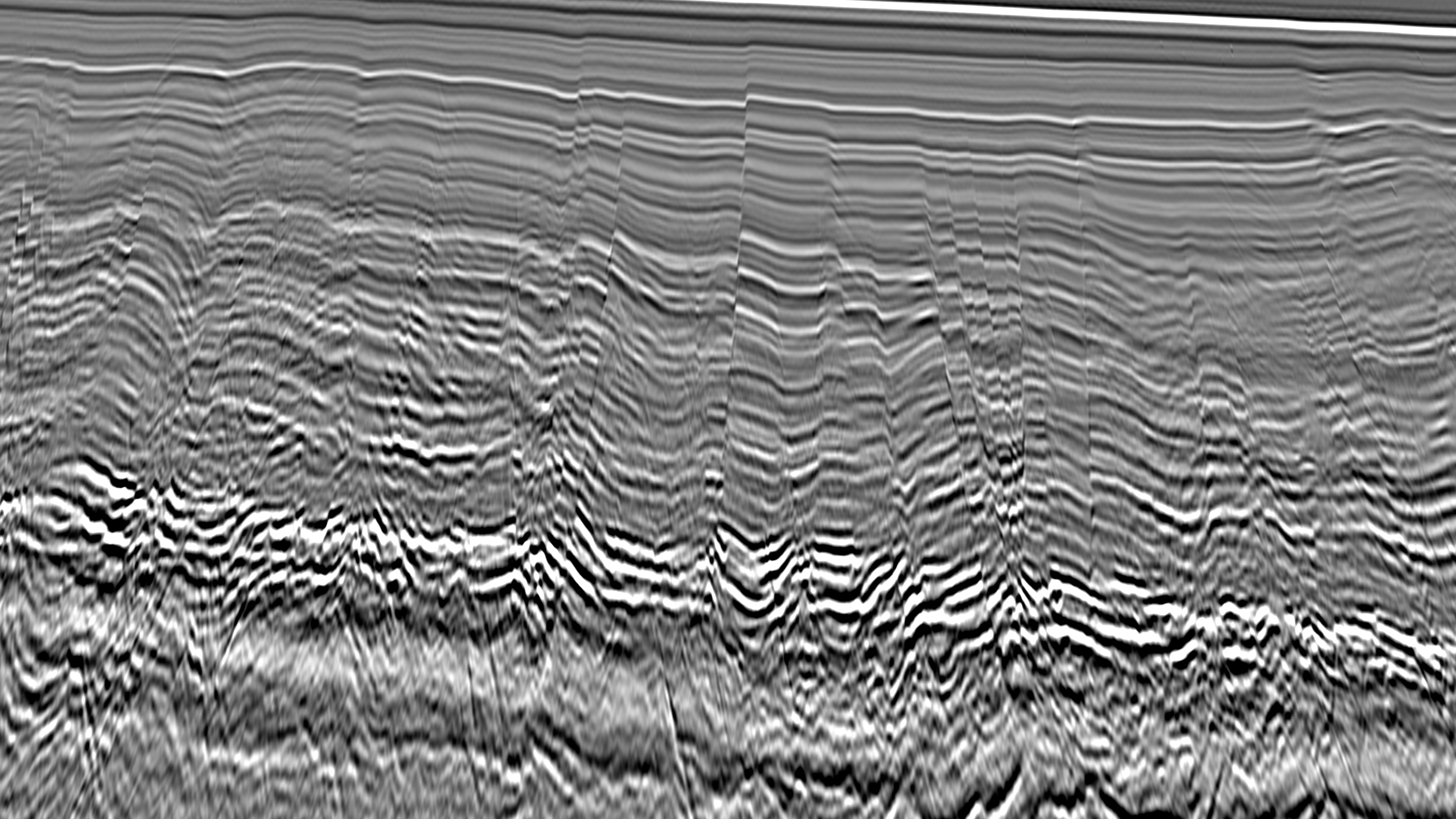

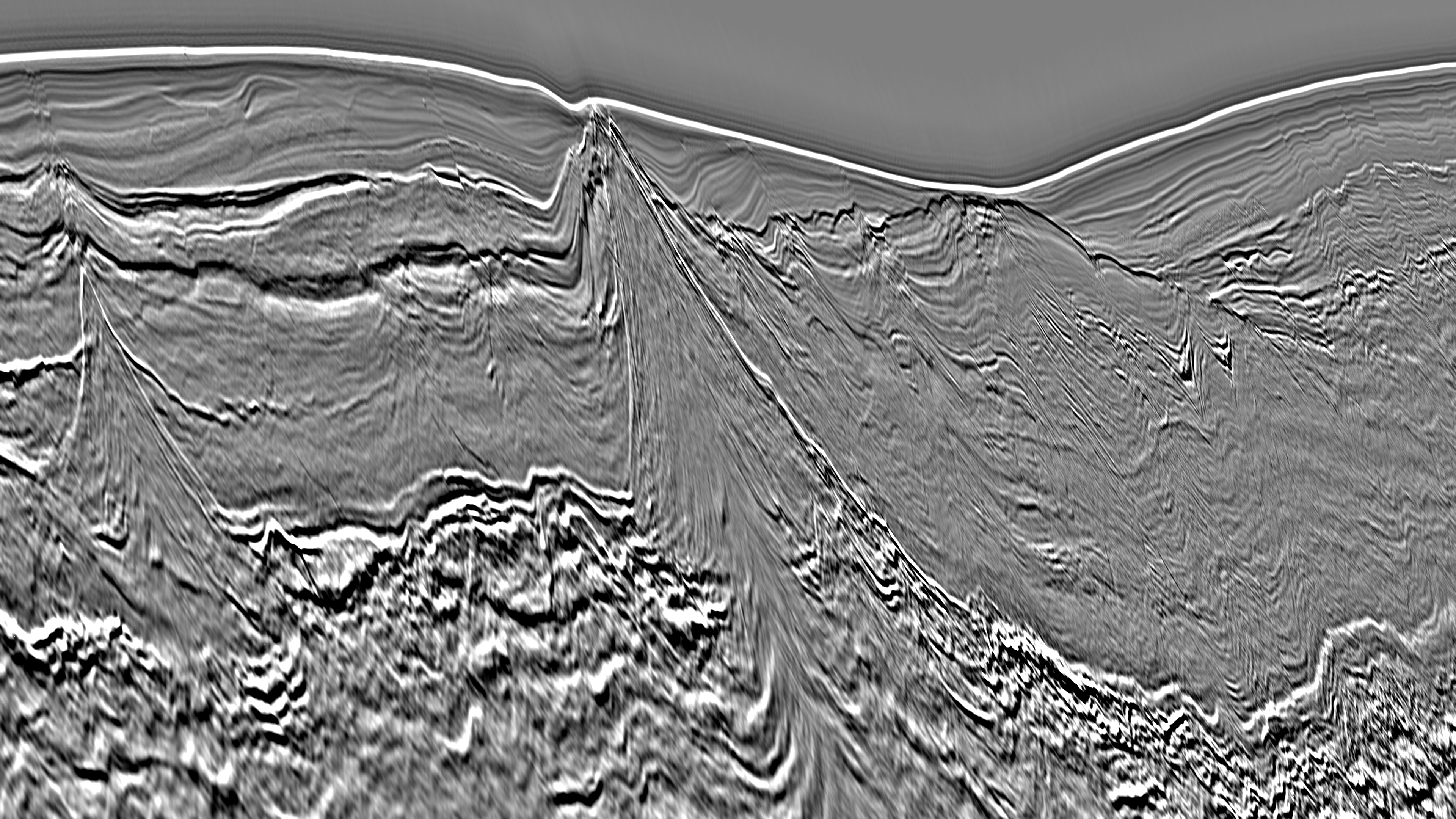

Faults and Details Example

A problem with greyscale displays is that they obliterate amplitude information. StratiScape displays retain maximum detail while clearly showing amplitudes.

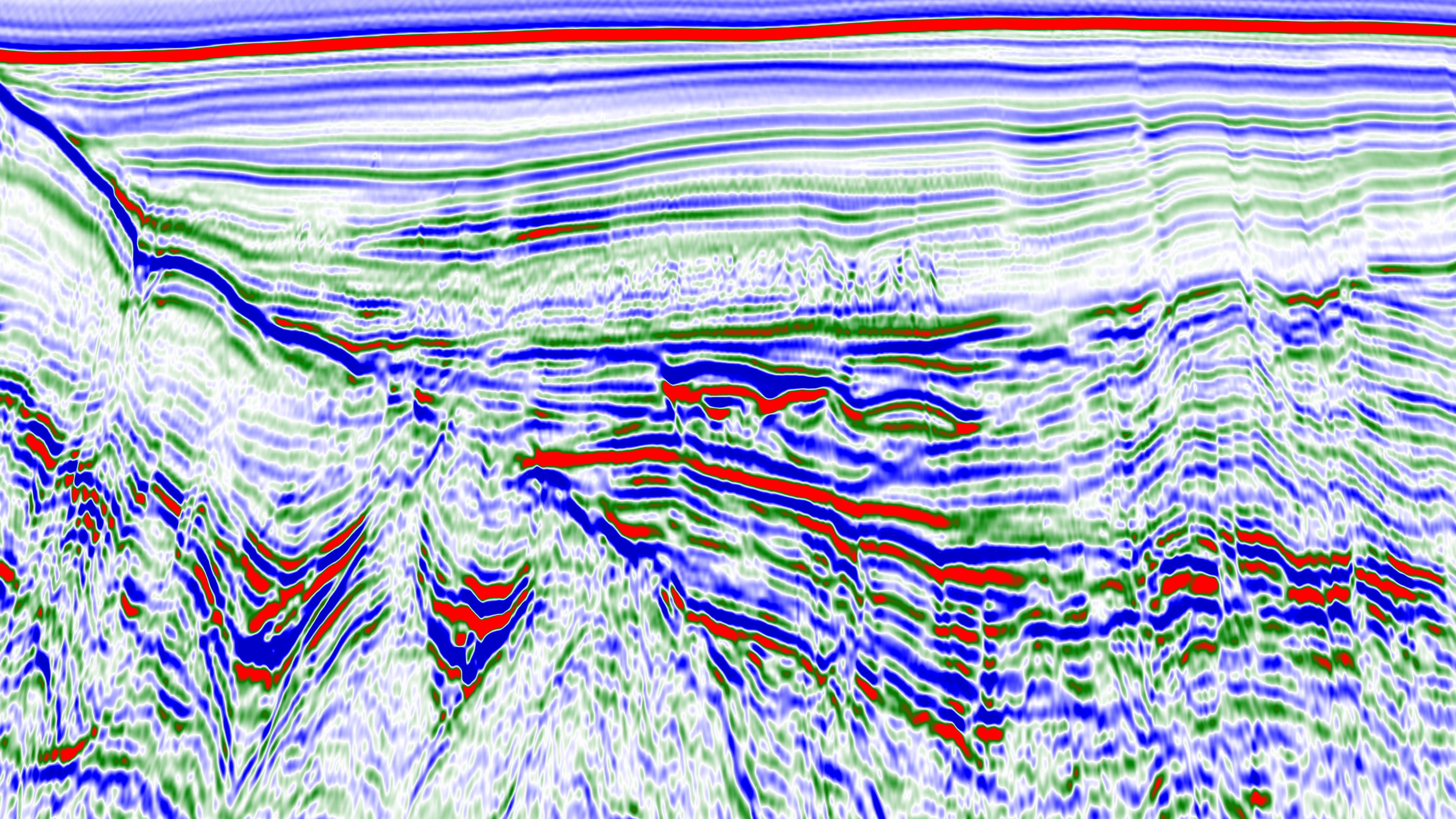

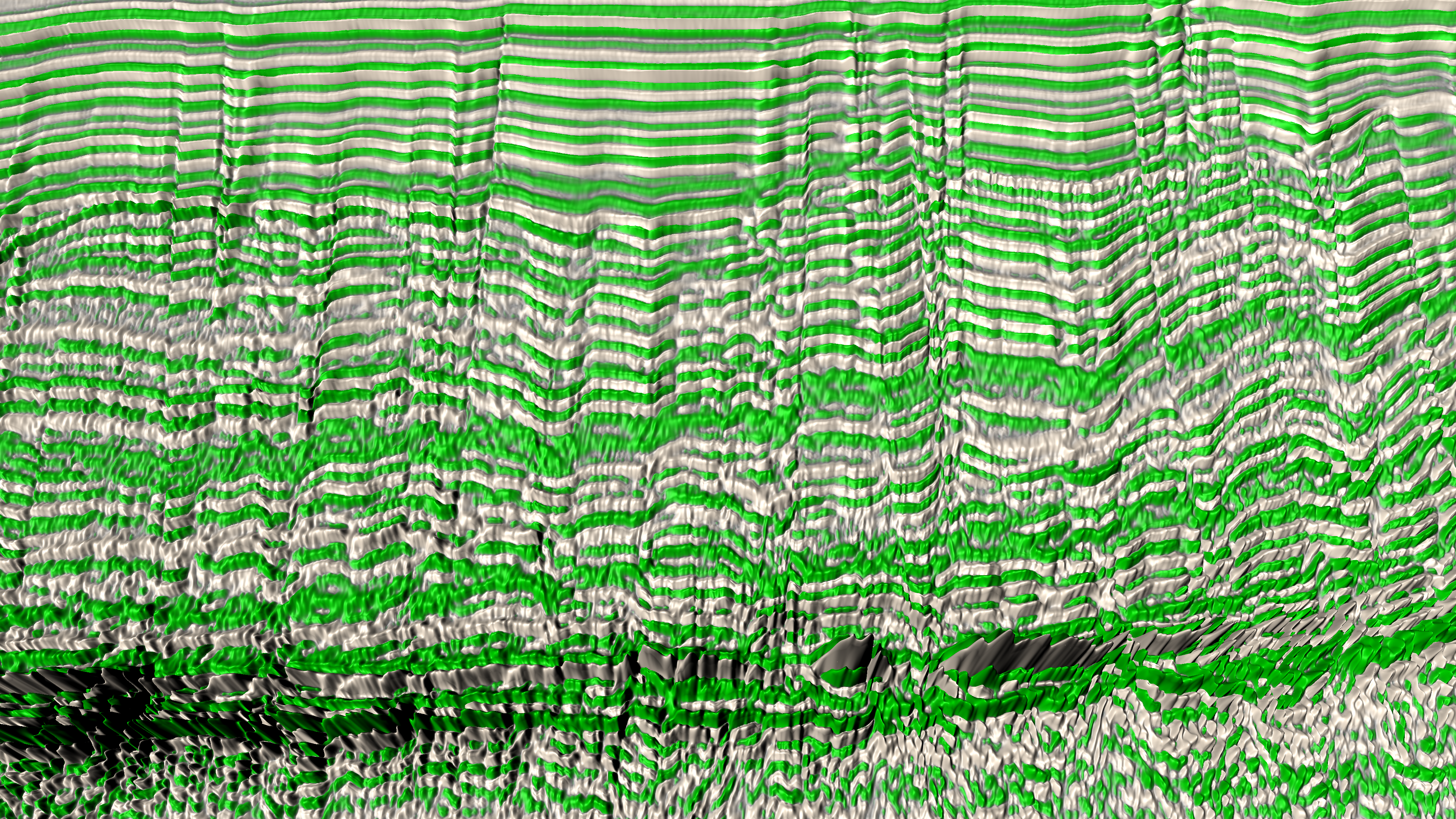

Dual Polarity Comparison

Our dual polarity display has shown itself to be exceptional at highlighting faults. Check out the clearly defined fault plane reflections.

This line is currently available as one of our example datasets.

Download the Rockall Trough Project
